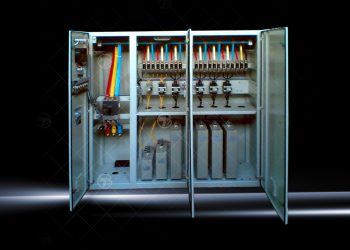

Capacitor Paneles (power factor correction) Low Voltage

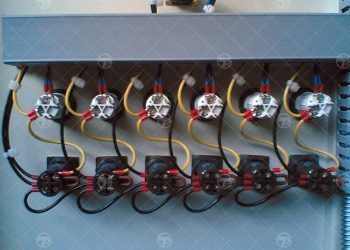

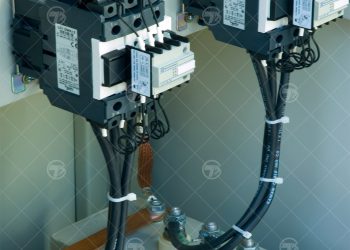

These panels are used for power factor correction in distribution networks to provide the required reactive power. The required equipment consists of a key or main feeder of switch or automatic circuit breaker, capacitor contactors, the capacitor (oily, dry or gas), the regulator for the capacitor command, manually command keys, and automatic signal lights. Technically these panels are in accordance with the following table of contents.
No Title Description
1 Dimension Height H = 1500-2200 mm
Width W = 500-900 mm
Depth D = 490-890 mm
2 Color RAL 7032
3 Protection Degree IP 40-42
4 Standard IEC 432
5 Rated (Named) Voltage Up to 0.4 kV
6 Rated (Named) Ampere Up to 2000 A
7 Short-Circuit Current 80 kA, 1s

8

Frequency 50 Hz
